Small Skid Steer Loader-1000
This small skid steer loader is ideal for multi-purpose operations. It is versatile and can easily cope with various tasks. The compact design of the whole machine makes it easy to operate in narrow spaces, and its strong power can meet the diversified needs of users, making it a powerful assistant for improving work efficiency.
Extra Features
- Premium Quality
- Secure Payments
- Satisfaction Guarantee
- Worldwide Shipping
Product Parameters
| Operating Weight | Kg | 1500 |
| Loading capacity | Kg | 500 |
| Engine | Rato | 739 |
| Engine power | Kw/rpm | 16.8/3600 |
| Hydraulic system | Open system | |
| Hydraulic pump type | 3 pumps+3 valve | |
| Tipping weight | Kg | 650 |
| Maximum walking speed | Km/h | 4 |
| Work Pressure | MPa | 22 |
| Fuel tank capacity | L | 20 |
| Hydraulic oil tank capacity | L | 20 |
| Machine and working dimensions | ||
| Machine working height | mm | 2610 |
| Machine height | mm | 1420 |
| Maximum departure angle | ° | 30 |
| Maximum ground clearance | mm | 200 |
| Track ground length | mm | 1300 |
| Machine length (without bucket) | mm | 1910 |
| Machine length (including bucket) | mm | 2400 |
| Maximum ground clearance angle of bucket | ° | 30 |
| Unloading height | mm | 2100 |
| Bucket shaft maximum flip height | mm | 2610 |
| Distance from the whole machine when unloading | mm | 400 |
| Unloading angle | ° | 41 |
| Maximum bucket tilt angle | ° | 92 |
| Bucket width | mm | 1050 |
| Front end maximum turning radius | mm | 1315 |
| Wheelbase | mm | 740 |
| Machine width | mm | 920 |

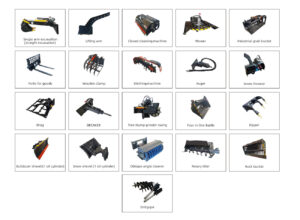

Appurtenance
